Not so short introduction to Attention and Transformers

By Kemal Erdem

Attention weights visualization

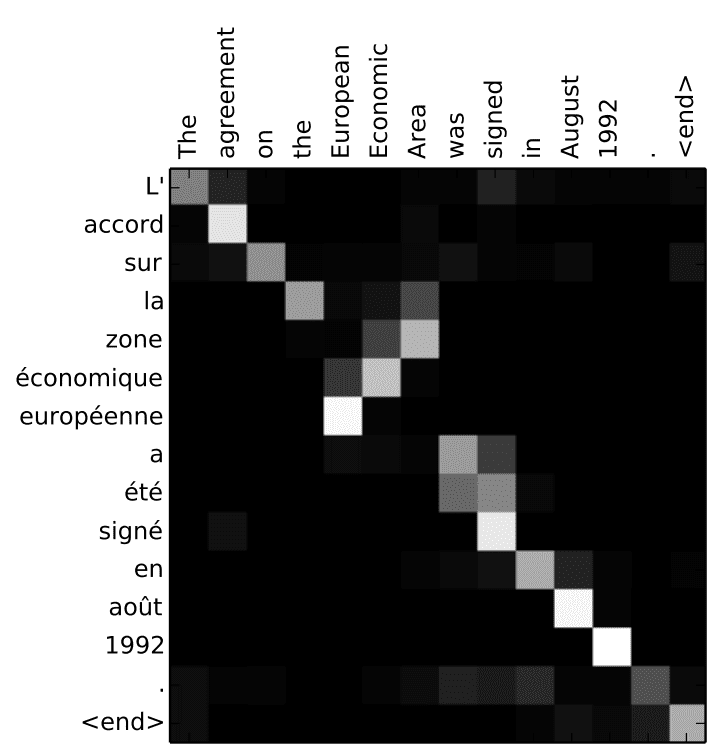

Figure 1: Attention weights for English to French translation, Source: Neural Machine Translation by Jointly Learning to Align and Translate

Soft attention

Figure 2: Image attention visualization, white regions have higher value of the attention weight, Source: Show, Attend, and Tell: Neural Image Caption Generation with Visual Attention

Hard attention

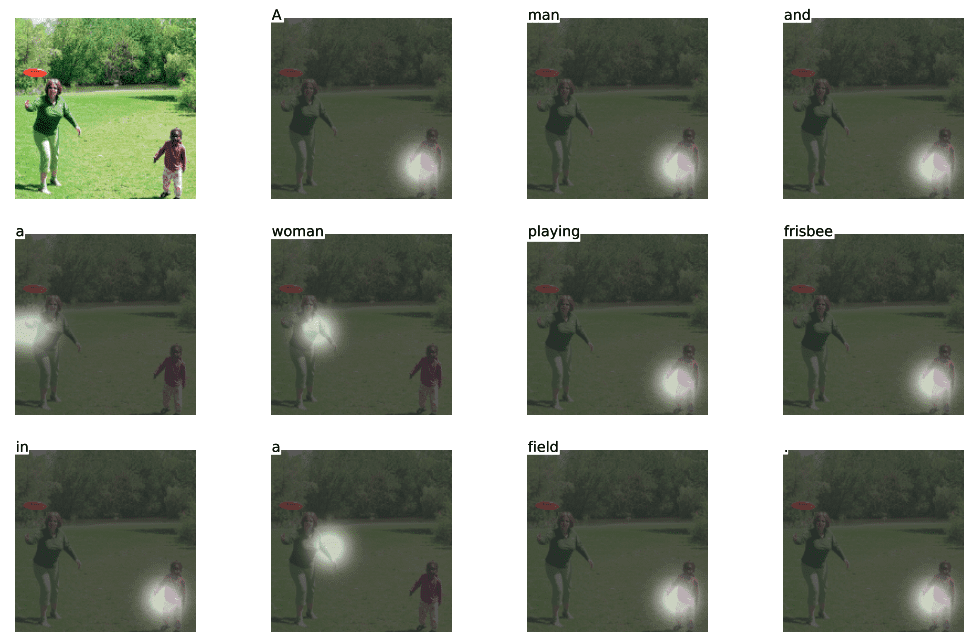

Figure 3: Hard attention visualization, white regions are the regions which model attends to, Source: Show, Attend, and Tell: Neural Image Caption Generation with Visual Attention

- **Input vectors**: $\color{limegreen}{X}$ (shape $N_X \times D_X$) - **Query vector**: $\color{mediumpurple}{q}$ (shape $D_Q$), this is our previous hidden state - **Similarity function**: $f_{att}$ - **Similarities**: **e**, $e_i = f_{att}(\color{mediumpurple}{q}, \color{limegreen}{X_i})$ - **Attention weights**: $a = \text{softmax}(e)$ (shape $N_X$) - **Output**: $\color{hotpink}{y} = \sum_i(a_i,\color{limegreen}{X_i})$

$f_{att}$ ---> **Scaled dot product** $\vec{a} \cdot \vec{b} = |\vec{a}| * |\vec{b}| * cos(\theta)$ $e_i = \color{mediumpurple}{q} \cdot \color{limegreen}{X_i} / \sqrt{D_Q}$

- **Input vectors**: $\color{limegreen}{X}$ (shape $N_X \times D_X$) - **Query vectors**: $\color{mediumpurple}{Q}$ (Shape $N_Q \times D_Q$) - **Similarity function**: _scaled dot product_ - **Similarities**: $E = \color{mediumpurple}{Q}\color{limegreen}{X^T}$ (shape $N_Q \times N_X$), $E_{i,j} = \color{mediumpurple}{Q_i} \cdot \color{limegreen}{X_j} / \sqrt{D_Q}$ - **Attention weights**: $A = \text{softmax}(E, dim=1)$ (shape $N_Q \times N_X$) - **Output**: $\color{hotpink}{Y} = A\color{limegreen}{X}$ (shape $N_Q \times D_X$) where $\color{hotpink}{Y_i} = \sum_j(A_{i,j},\color{limegreen}{X_j})$

Transformer Architecture

Values Visualization

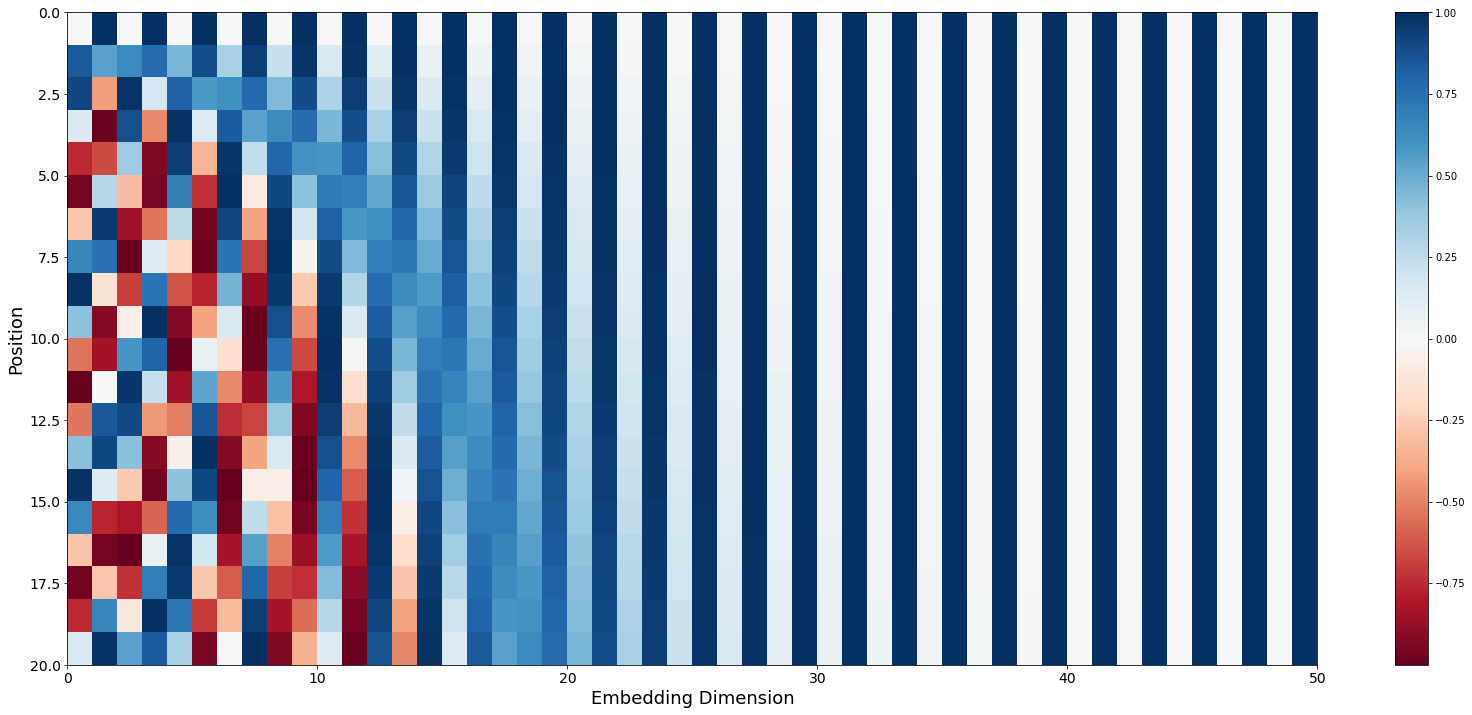

Figure 4: Positional Encoding values for first 20 positions, Generated with the use of Tensorflow - Positional encoding code

Values Visualization

Figure 5: Positional Encoding periods for further indexes, Generated with the use of Tensorflow - Positional encoding code

Masked Attention - "I can't see the future"

Figure 6: Masked Self-Attention Layer

Multi-Headed Self-Attention

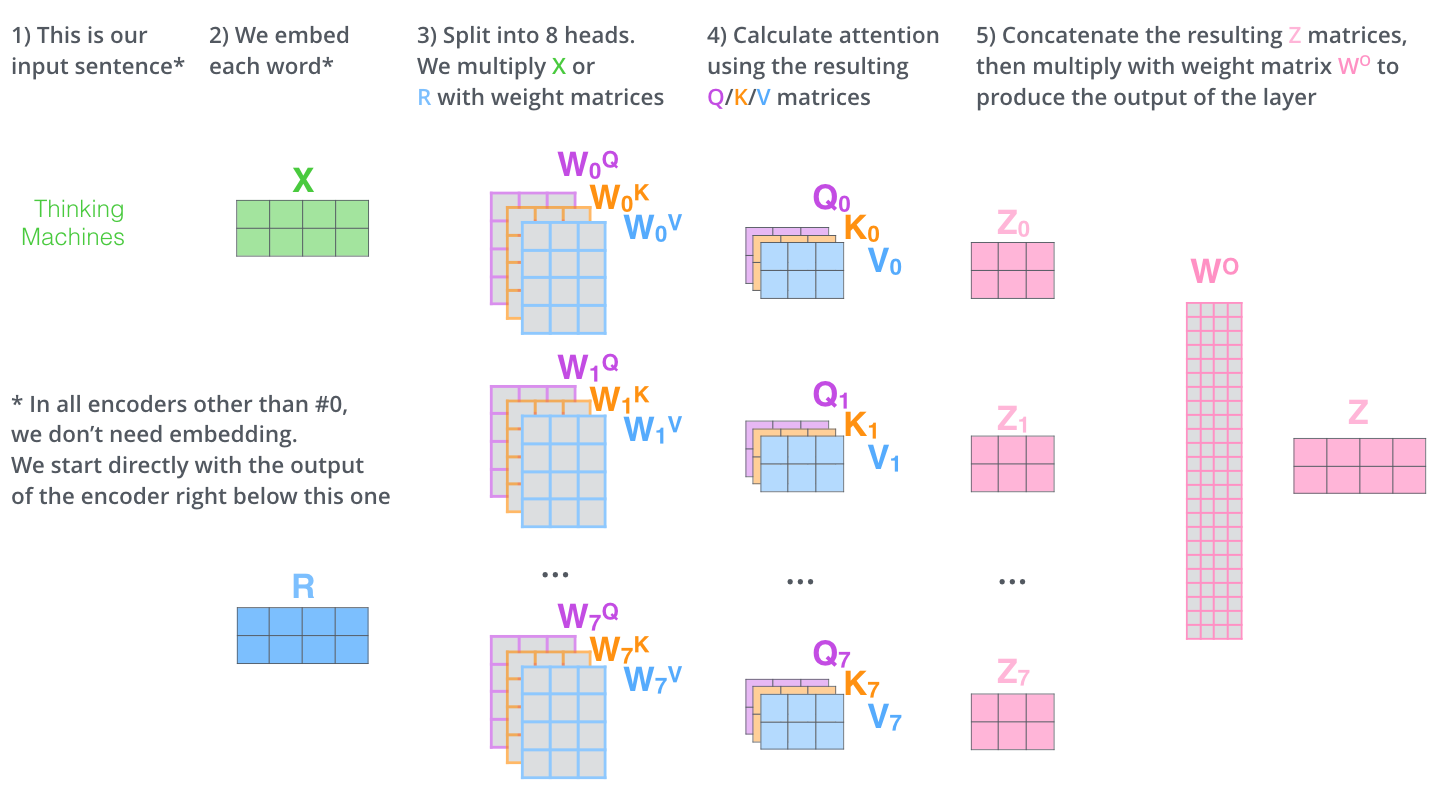

Figure 7: Multi-head processing, Source: Jay Alammar, The Illustrated Transformer, 2019

Architecture Recap

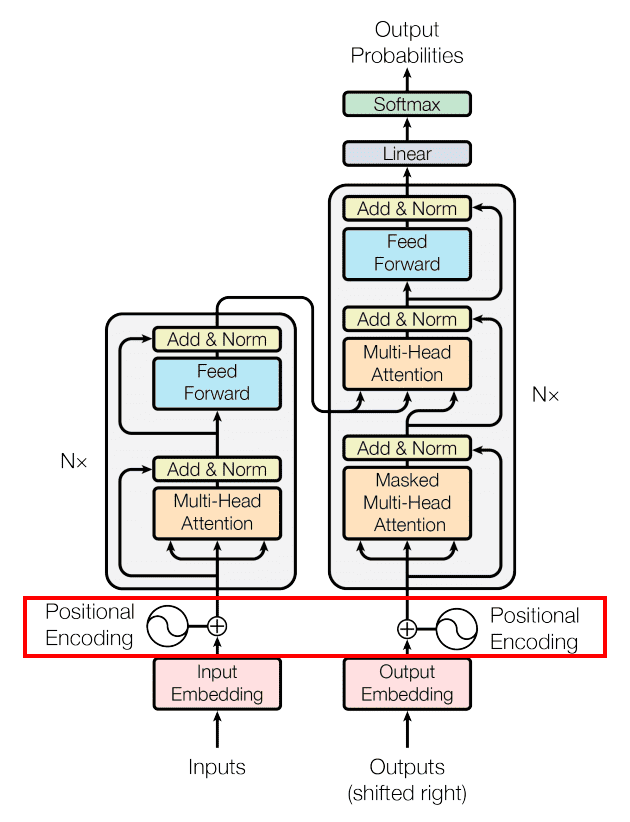

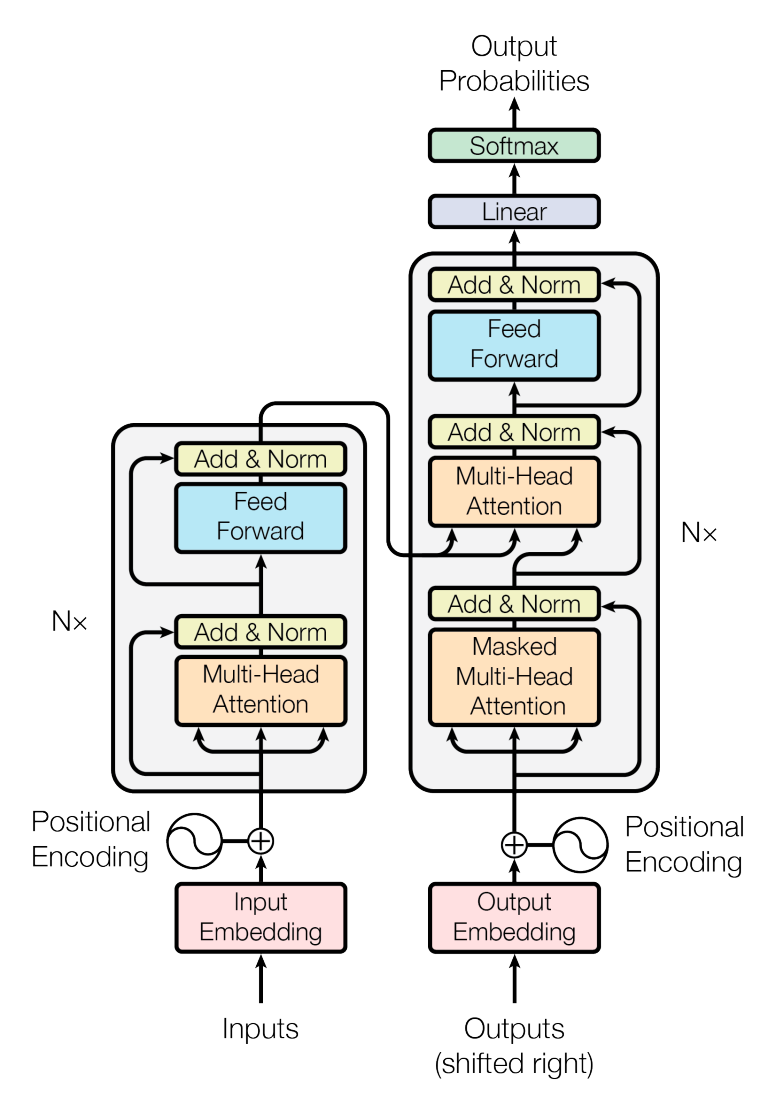

Figure 8: The Transformer - model architecture., Source: Vaswani et al, "Attention Is All You Need", NeurIPS 2017

Encoder Block

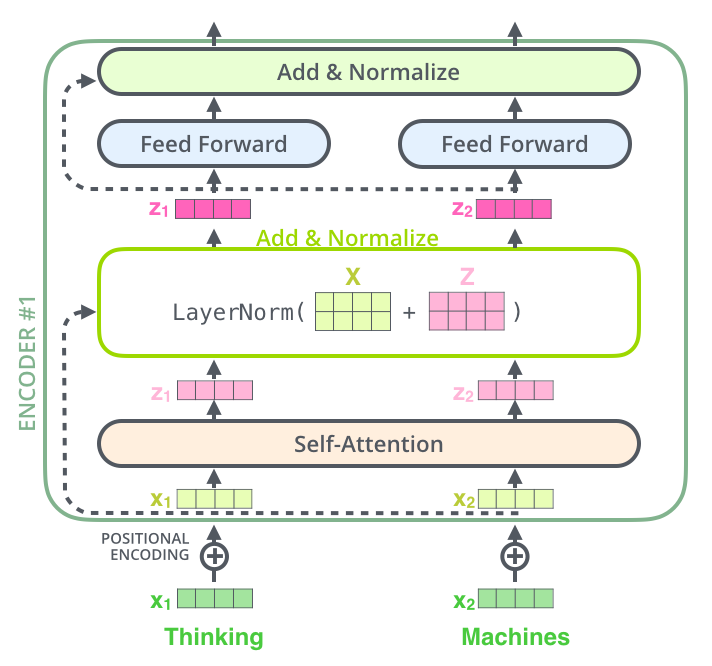

Figure 9: Encoder Block structure with residual connection and normalization, Source: Jay Alammar, The Illustrated Transformer, 2019

Encoder-Decoder

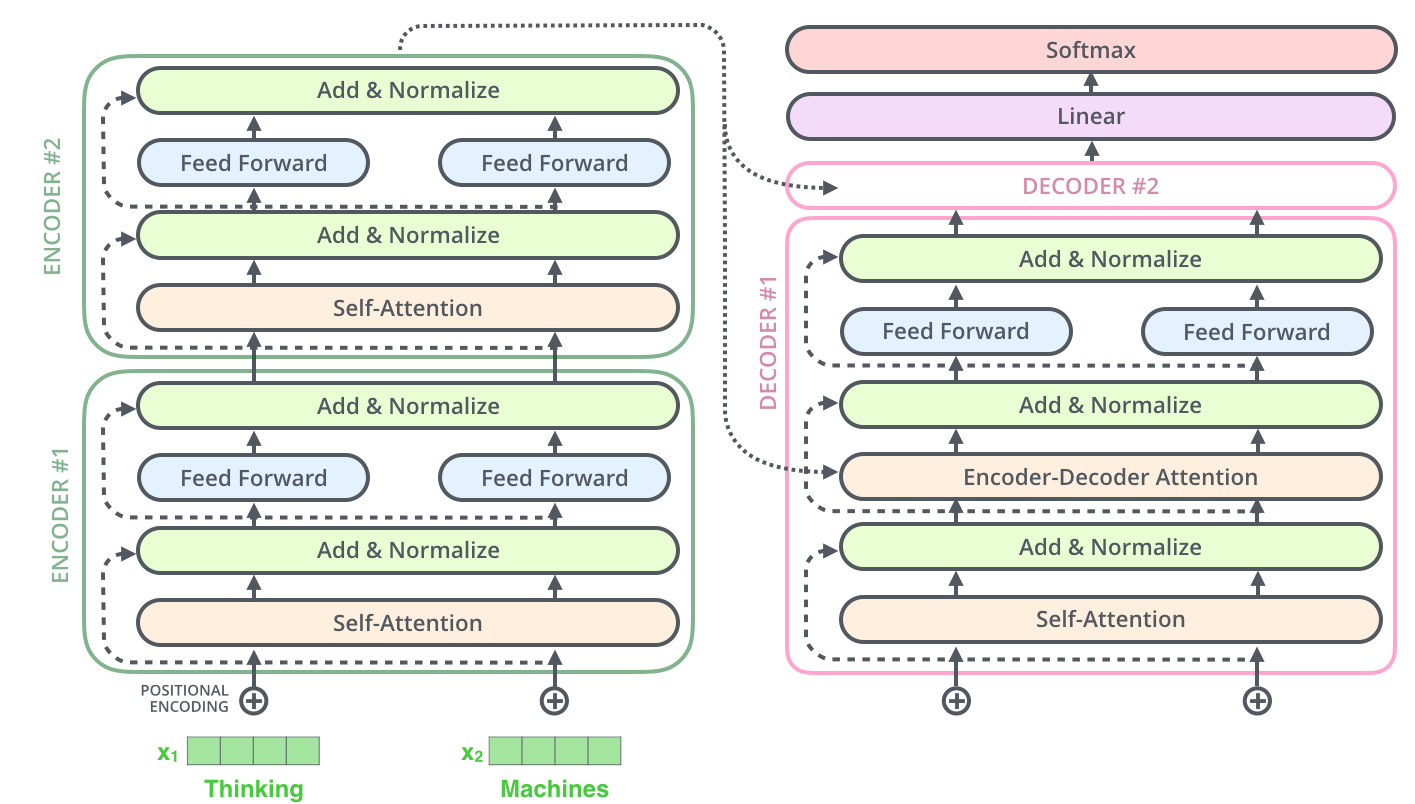

Figure 10: Stacked encoders with connection to stacked decoders, Source: Jay Alammar, The Illustrated Transformer, 2019

First timestep

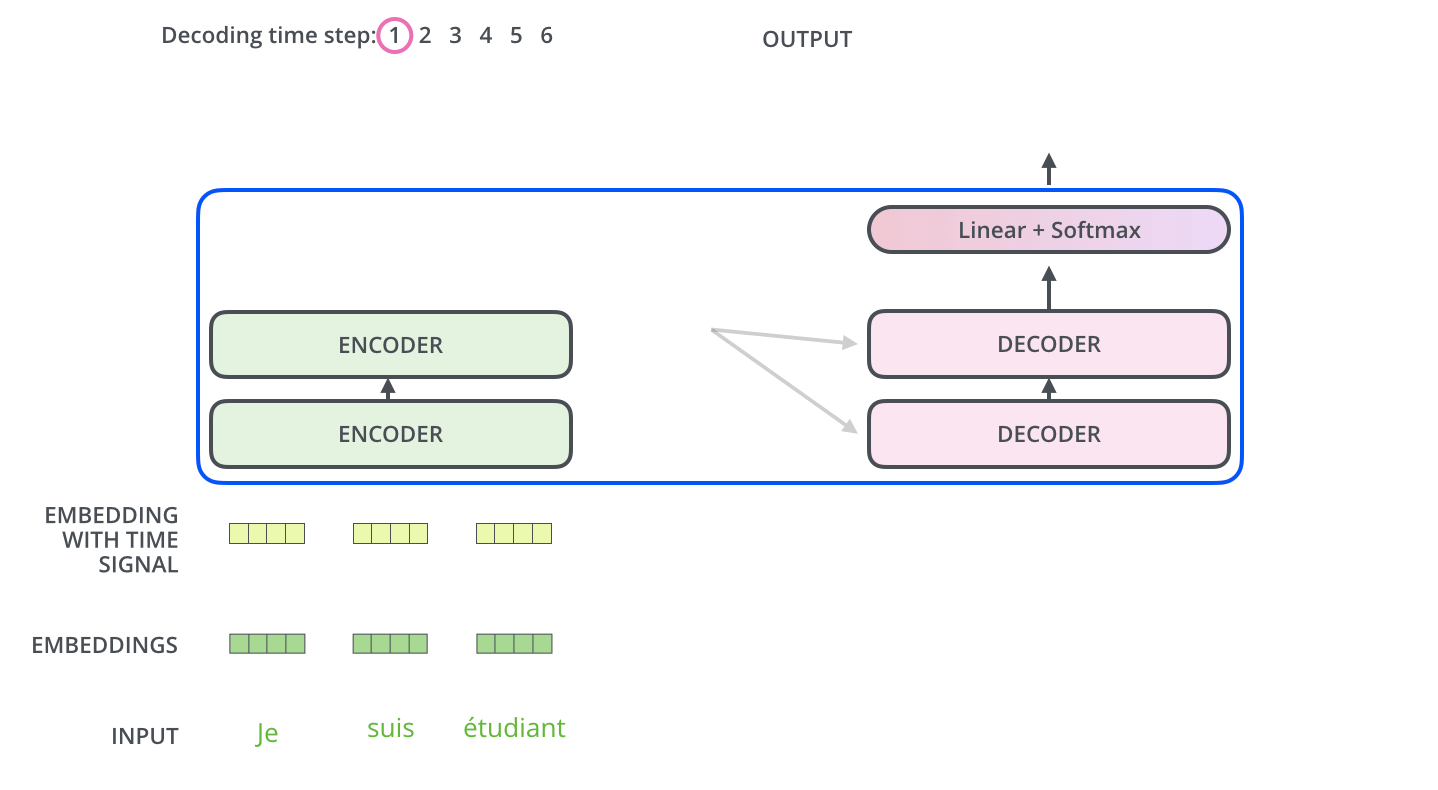

Figure 11: Generating output for the first timestep, Source: Jay Alammar, The Illustrated Transformer, 2019

Deconding while output

Figure 12: Step by step generation of the output until the EOS token returned, Source: Jay Alammar, The Illustrated Transformer, 2019

The output

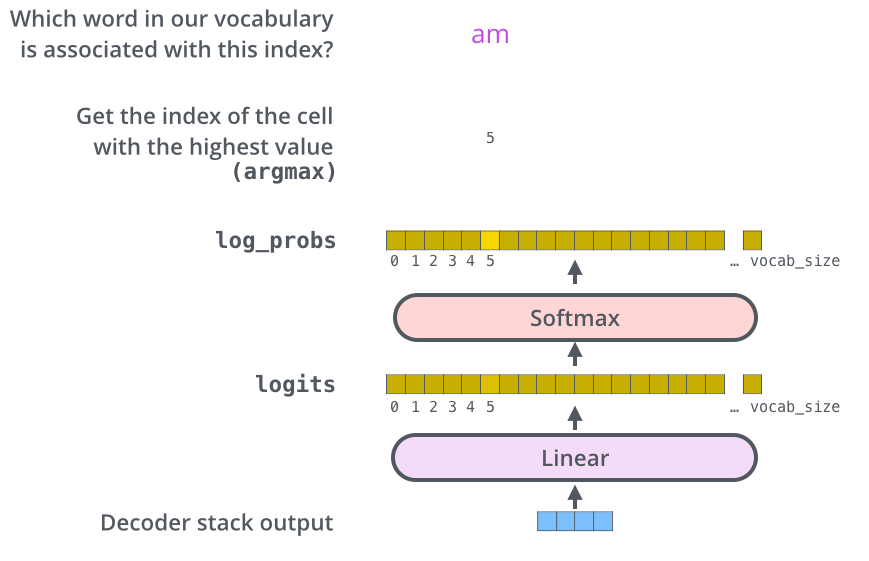

Figure 13: Output of the last decoder with classification, Source: Jay Alammar, The Illustrated Transformer, 2019

Original Transformer

Table 1: Variations on the Transformer architecture. Unlisted values are identical to those of the base model, Source: Vaswani et al, "Attention Is All You Need", NeurIPS 2017

Source: imgflip

Transformers...

Model	Layers	Width	Heads	Params	Data	Training
Transformer-Base	12	512	8	65M		8xP100 (12h)
Transformer-Large	12	1024	16	213M		8xP100 (3.5d)
GPT-2-XL	48	1600	25	1558M	40GB
Megatron-LM	72	3072	32	8300M	174GB	512x V100 (9d)
GTP-3 175B	96	12888	96	175000M	45TB	355y on V100

Table 2: Transformer model comparison

Bibliography

Sutskever et al, “Sequence to sequence learning with neural networks”, NeurIPS 2014 https://arxiv.org/abs/1409.3215
Bahdanau et al, “Neural machine translation by jointly learning to align and translate”, ICLR 2015 https://arxiv.org/abs/1409.0473
Xu et al, “Show, Attend, and Tell: Neural Image Caption Generation with Visual Attention”, ICML 2015 https://arxiv.org/abs/1502.03044
Ashish Vaswani et al, “Attention Is All You Need”, NeurIPS 2017 https://arxiv.org/abs/1706.03762
Jay Alammar, “The Illustrated Transformer”, 2019 http://jalammar.github.io/illustrated-transformer/
University of Michigan, “Deep Learning for Computer Vision”, 2019 Lectures
Kemal Erdem, “Introduction to Attention Mechanism”, 2021 https://erdem.pl/2021/05/introduction-to-attention-mechanism
Kemal Erdem, “Understanding Positional Encoding in Transformers”, 2021 https://erdem.pl/2021/05/understanding-positional-encoding-in-transformers
